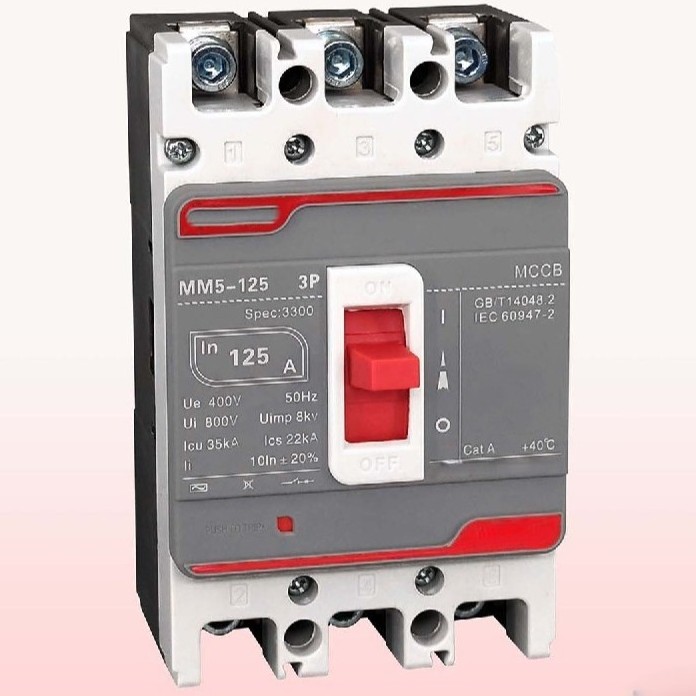

MCCB-M5

The rated insulation voltage of this circuit breaker is up to 1000V, suitable for distribution network circuits with AC 50Hz, rated working voltage up to 400V, and rated working current up to 1600A. It is used to distribute electrical energy and protect lines and power equipment from losses caused by overload, short circuit, undervoltage and other faults. At the same time, it can also serve as infrequent starting and overload, short circuit, and undervoltage protection for electric motors. This circuit breaker has the characteristics of small size, high breaking height, and short arcing, making it an ideal product for users. Circuit breakers can be installed vertically or horizontally. This product complies with standards such as IEC60947-2 and GB/T14048.2.
